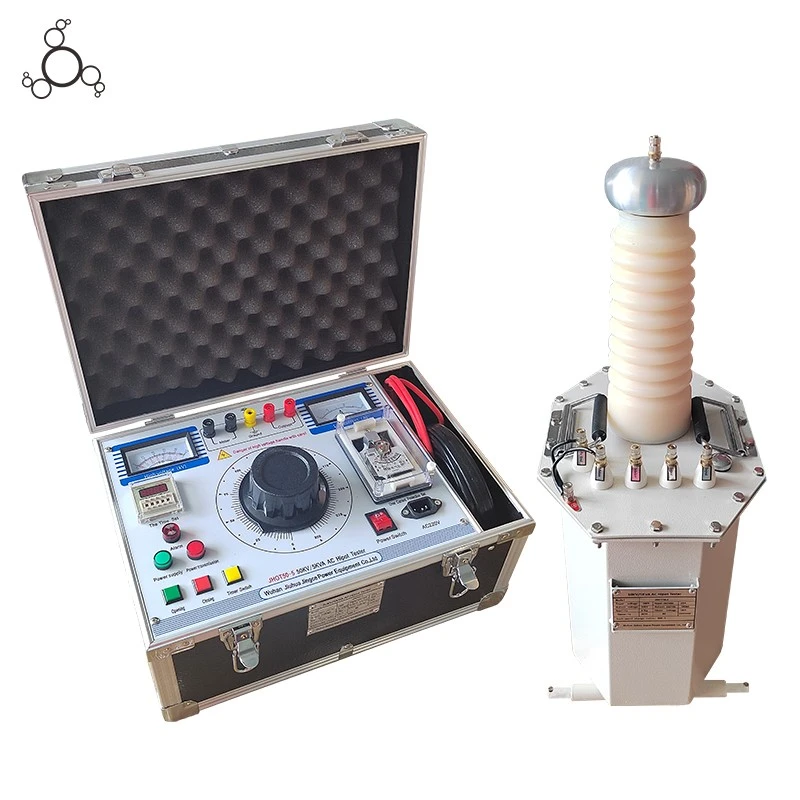

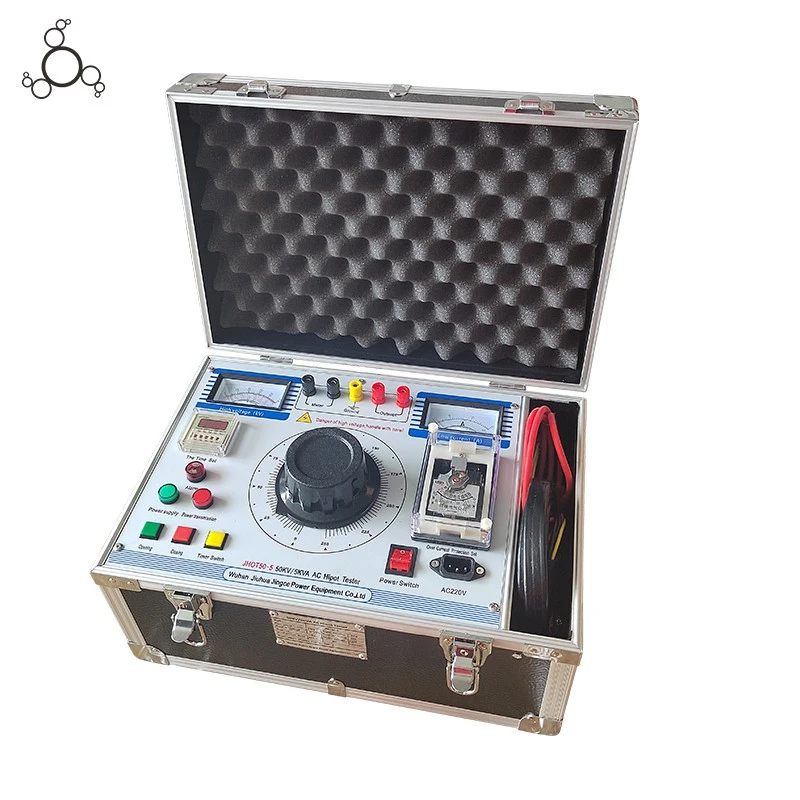

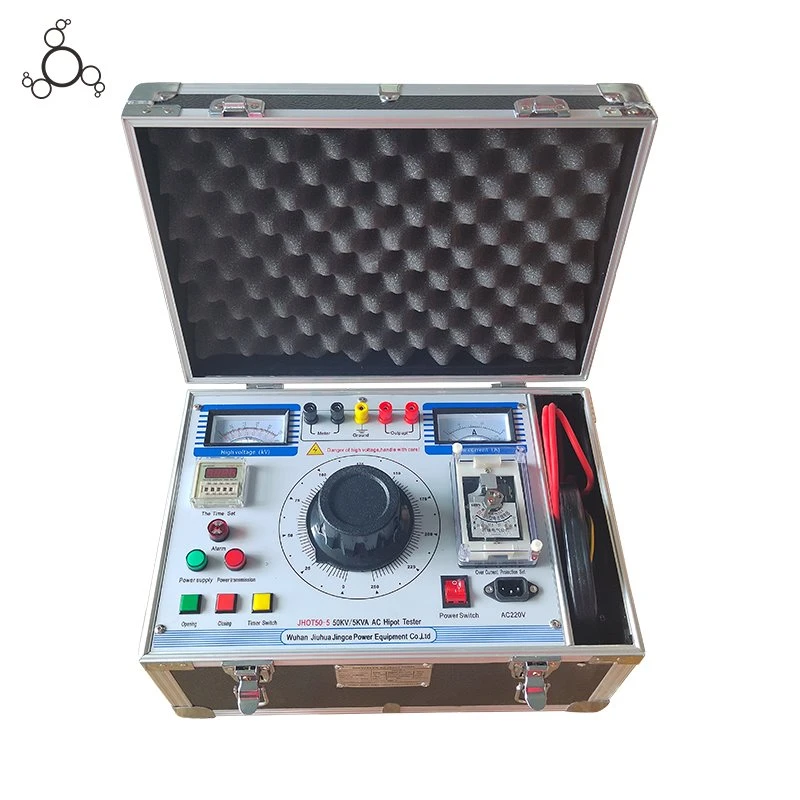

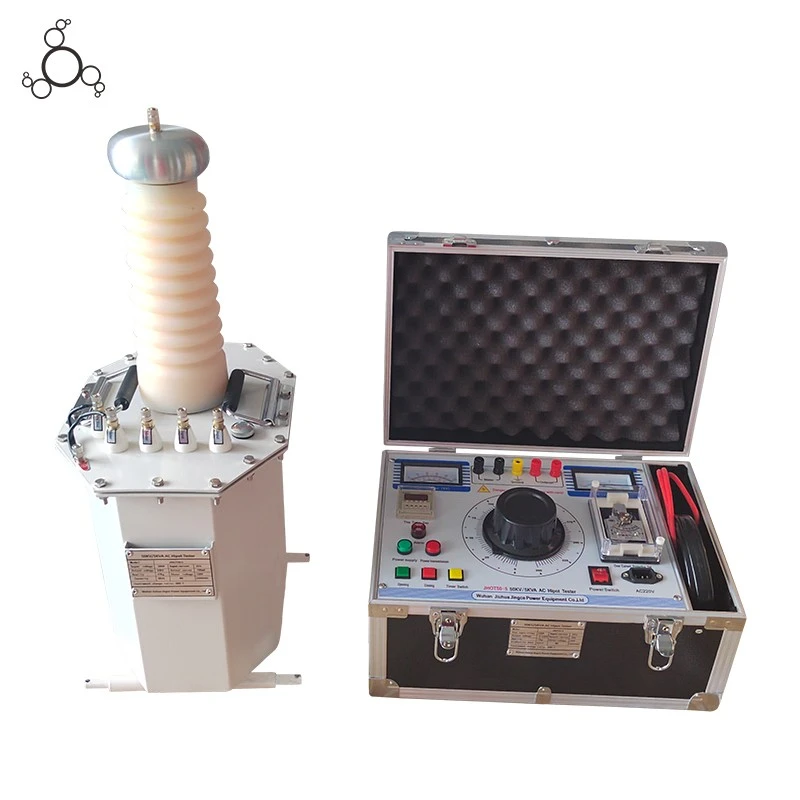

The 50kV 5kVA AC And DC Hipot Tester is a high-performance core device of TDM(G) series AC/DC power frequency withstand voltage test equipment, manufactured in strict compliance with national standard JB/T 9641-1999 and power industry standard DL/T848.2-2004. Adopting advanced electromagnetic induction and half-wave rectification technology, it integrates AC and DC high-voltage withstand voltage testing functions, and is specially designed for insulation strength detection of high-voltage electrical equipment, components, insulating materials, as well as insulating oil testing in power systems, industrial and mining enterprises and scientific research institutions. With a compact oil-immersed structure, it outputs 50kV rated AC high voltage and 70kV DC high voltage, providing accurate and safe test data for high-voltage preventive and handover acceptance tests, and is an essential high-voltage testing instrument for power system operation and maintenance.

Product characteristics

1. Integrated AC/DC Test, Multi-functional Application

Integrates power frequency AC withstand voltage and DC high-voltage leakage test functions; free switching between two modes via the high-voltage silicon stack short-circuit rod, and is also applicable for insulation oil testing to meet diversified high-voltage insulation detection needs of different equipment with one machine.

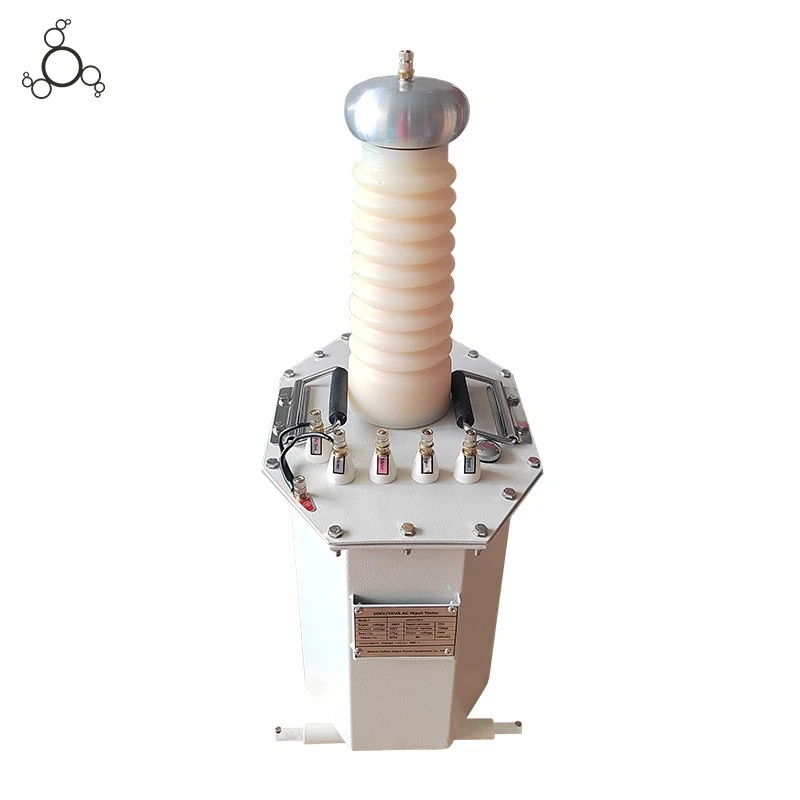

2. Oil-immersed Structure, Stable and Reliable Performance

Adopts professional oil-immersed insulation design with transformer oil as medium, excellent insulation and heat dissipation, temperature rise only 15℃ under 5min rated load, no oil leakage and strong moisture resistance for complex on-site environments.

3. High Test Accuracy, Precise Parameter Output

Voltage and current measurement accuracy up to ±(1.0% reading + 2 digits); external resistance-capacitance voltage divider optional to eliminate capacitance rise/voltage drop influence, ensuring accurate data for testing of insulating oil and electrical equipment detection.

4. Flexible Cascade Expansion, Wide Adaptability

Equipped with 200V series taps, 2-3 units can be cascaded for higher voltage output (AC 150kV/DC 210kV); customizable 5-15kV medium-voltage taps for high-voltage motor testing, strong expandability for different test scenarios.

5. Compact Design, Easy Operation & Carrying

Single-frame core coaxial winding structure reduces magnetic leakage; octagonal shell with clear terminal layout, small size and light weight, easy for on-site mobile testing and quick operation without professional complex training.

6. Comprehensive Safety Protection, Guaranteed Test Safety

Reliable grounding design for high-voltage tail, casing and measuring winding; external current-limiting resistor, ball gap protection available for overvoltage/overcurrent protection, effectively protecting the instrument and tested objects including for test for transformer oil.

7. Strong Load Adaptability, Wide Application Scope

Unlimited tested product capacitance, supports 1.5x rated current rapid charging for large-capacitance equipment (cables, capacitors); widely used in power, mining and scientific research fields for all types of high-voltage equipment and insulating medium detection.

Product Parameter

Model	Capacity	High voltage(KV)		High voltage current(mA)		Low voltage input		Transformation ratio	Temperature rise℃
Model	(KVA)	AC	DC	AC	DC	Voltage (V)	Current (A)	High/instrument	5 minutes
TDM(G)1.5/50	1.5	50	70	30	15	200	7.5	500	15
TDM(G)3/50	3	50	70	60	15	200	15	500	15
TDM(G)5/50	5	50	70	100	15	200	25	500	15
TDM(G)10/50	10	50	70	200	50	200	50	500	15
TDM(G)20/50	20	50	70	400	100	380	53	500	15
TDM(G)30/50	30	50	70	600	100	380	79	500	15
TDM(G)40/50	40	50	70	800	105	380	105	500	15
TDM(G)50/50	50	50	70	1000	100	380	132	500	15
TDM(G)10/100	10	100	140	100	50	200	50	1000	15
TDM(G)20/100	20	100	140	200	100	380	53	1000	15
TDM(G)30/100	30	100	140	300	100	380	79	1000	15
TDM(G)40/100	40	100	140	400	100	380	105	1000	15
TDM(G)50/100	50	100	140	500	100	380	132	1000	15
TDM(G)20/150	20	150	210	133	100	380	53	1000	15
TDM(G)30/150	30	150	210	200	100	380	79	1000	15
TDM(G)40/150	40	150	210	267	100	380	105	1000	15
TDM(G)50/150	50	150	210	333	100	380	132	1000	15
TDM(G)100/150	100	150	210	667	150	380	263	1000	15
