Power Cable Tester for Fault Location, Withstand Testing and Insulation Diagnostics
Underground power cable networks face persistent degradation from thermal cycling, moisture ingress, mechanical excavation damage, and insulation aging. Power cable testers encompass specialized diagnostic instrumentation engineered to prelocate high-resistance faults, pinpoint exact breakdown coordinates using acoustic-magnetic synchronization, and execute high-voltage dielectric withstand verification. Deploying robust test systems prevents extended grid downtime and eliminates costly exploratory trenching across municipal and industrial distribution circuits.
-
![Intelligent Underground Pipeline Detectors]()
Intelligent Underground Pipeline DetectorsJHPD100 color compass track detector is my company newly developed a new type of multifunctional pipeline, pipe, cable, fiber optic cable and other detection equipment. can accurately detect -
![Portable Partial Discharge Tester]()
Portable Partial Discharge Tester1.Configure different sensors including uhf pd sensor to achieve partial discharge detection of almost all high-voltage electrical equipment;. 2.Provide time domain waveform, PRPD, PRPS and other -
![Intelligent Underground Pipe Cable Locator]()
Intelligent Underground Pipe Cable LocatorThe JHPS190 is an industrial underground pipeline/cable locator, for tracing routes, measuring depth and detecting faults.. It has 12 active (577Hz–201kHz) and 4 passive (50Hz,250Hz,3.20kHz,4.09kHz) -

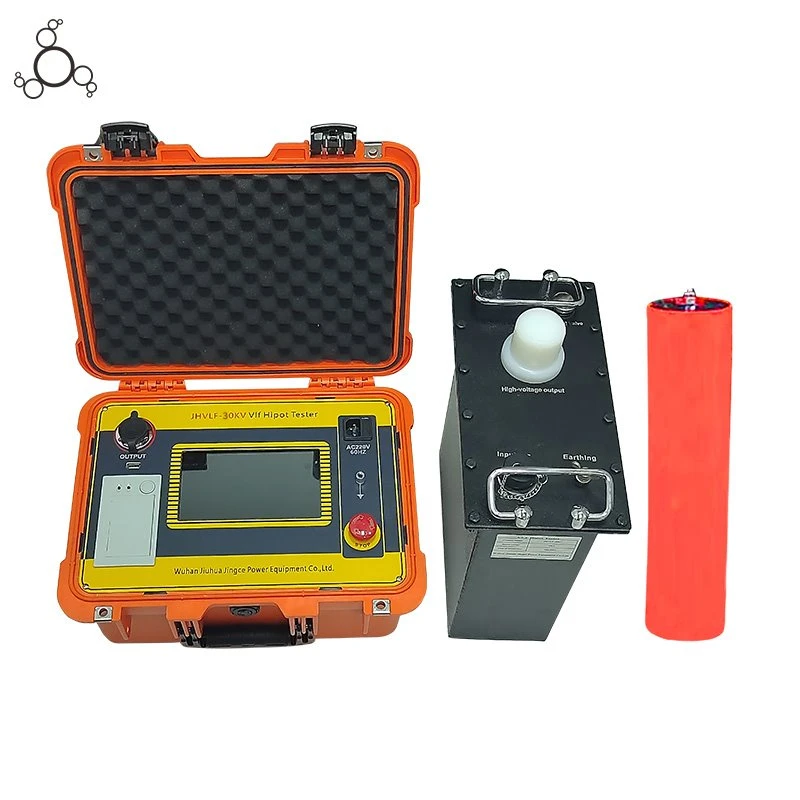

![30kV 40kV 50kV 60kV 80kV VLF High Voltage Hipot Tester]()
30kV 40kV 50kV 60kV 80kV VLF High Voltage Hipot TesterThis series includes five independent models: 30kV, 40kV, 50kV, 60kV, 80kV vlf tester. They are professional 0.1Hz ultra-low frequency AC withstand voltage test equipment for power cables, -

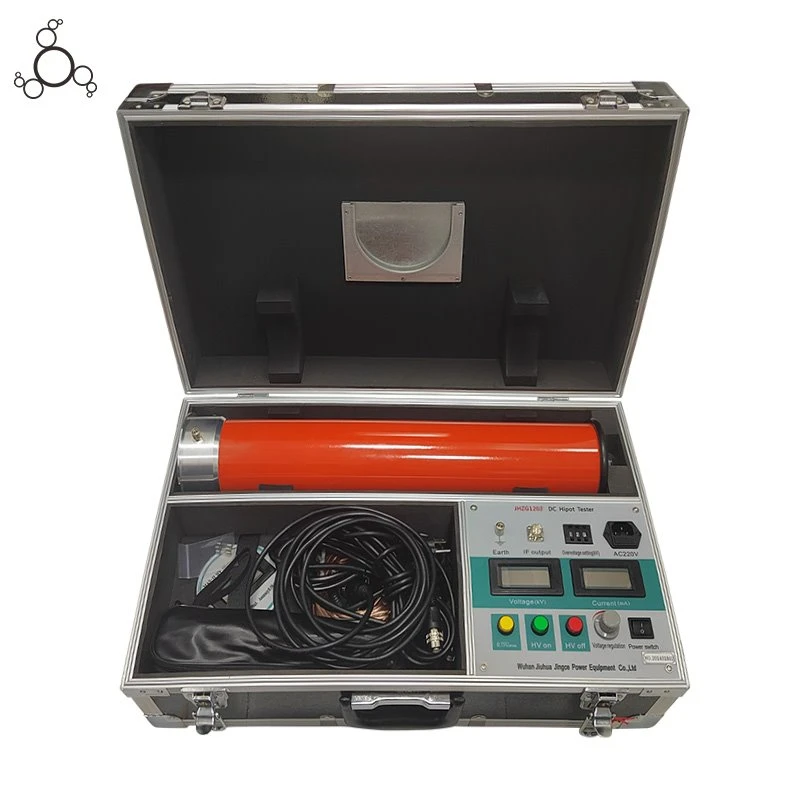

![120KV 2mA 3mA 5mA 10mA Integrated DC Generator]()
120KV 2mA 3mA 5mA 10mA Integrated DC GeneratorThis series includes four independent models: 120kV/2mA, 120kV/3mA, 120kV/5mA, 120kV/10mA DC high voltage generators. They are portable, stable, and safety-protected test devices for DC withstand -
![Split 200kV 2mA 3mA 5mA 10mA DC High Voltage Generator]()
Split 200kV 2mA 3mA 5mA 10mA DC High Voltage GeneratorThis series includes four independent split-type models: 200kV/2mA, 200kV/3mA, 200kV/5mA, 200kV/10mA dc high voltage generator. They are professional dc hipot tester equipment for dc withstand -
![60kV 2mA 3mA 5mA 10mA Integrated DC High Voltage Generator]()
60kV 2mA 3mA 5mA 10mA Integrated DC High Voltage GeneratorThis series of DC high voltage generators is a portable, high-precision test device used for DC withstand voltage test and leakage current test of power equipment. It includes four standard models:
Low-Voltage TDR Cable Fault Locators: Utilizes time-domain reflectometry (TDR) to measure cable length, open circuits, short circuits, and low-resistance impedance mismatches across low-voltage power and control lines.
High-Voltage Surge Generators (Thumpers): Delivers high-energy DC surge discharges up to 32kV combined with arc reflection methods (ARM) to convert high-resistance intermittent faults into measurable low-resistance flashovers.
Acoustic-Magnetic Pinpointing Receivers: Synchronizes acoustic shockwave arrival times with electromagnetic transient signals to pinpoint exact underground fault coordinates within centimeter-level accuracy.
VLF (Very Low Frequency) AC Hipot Testers: Applies 0.1Hz sinusoidal or cosine rectangular high-voltage waveforms to test medium-voltage XLPE insulated cables without degrading healthy insulation.
Partial Discharge (PD) Cable Diagnostic Systems: Detects and maps micro-voids, electrical treeing, and insulation defects in high-voltage subterranean cable systems under live or off-line testing conditions.
Technical Specifications
| Parameter | Specification |
| Max Surge Voltage Output | 0 to 32 kV, adjustable across 8 kV, 16 kV, and 32 kV taps |
| Surge Energy | Up to 2,000 J |
| TDR Fault Pre-location Range | Up to 32 km |
| TDR Distance Accuracy | +/- 0.2% of total range or +/- 0.5 m |
| VLF Test Output Frequency | 0.1 Hz, 0.05 Hz, 0.02 Hz |
| Max Load Capacitance | Up to 5 microfarads at 0.1 Hz |
| Acoustic Pinpoint Localization Accuracy | +/- 0.1 m |
| Acoustic Detection Technology | Dual-channel noise filtering |
| Operating Power Supply | AC 220V +/- 10%, 50/60 Hz; internal heavy-duty lithium-ion battery pack |
| Battery Operating Time | Up to 6 hours of continuous field operation |
| Enclosure Rating | IP65 |
| Enclosure Design | Heavy-duty wheeled ruggedized transport casing with sealed front-panel controls |
| Deployment Environment | Outdoor and all-weather field deployment |
Key Features
Multiple Pre-Location Modes
Integrates TDR, Arc Reflection Method (ARM), Secondary Impulse (SIM), and Current Impulse (ICM) to diagnose complex cable faults.
01
Real-Time Digital Signal Processing (DSP)
Proprietary filtering algorithms strip out ambient background noise from nearby radio transmissions and industrial machinery.
02
High-Energy Surge Isolation
Integrated safety dump switches automatically discharge internal capacitors within 5 seconds of test termination.
03
Data Logging and USB Export
Internal flash storage records up to 500 test waveform logs with GPS timestamping for utility audit compliance.
04
Daylight-Readable Touchscreen
10.4-inch high-brightness LCD display optimized for outdoor visibility under direct sunlight.
05
Test Applications
Municipal Power Utility Grid Maintenance: Routine inspection and emergency fault localization on urban underground distribution cables (10kV to 35kV).
Renewable Energy Generation Sites: Subterranean array cable testing in utility-scale photovoltaic (PV) solar farms and wind power installations.
Industrial Plant Distribution Networks: Preventive insulation integrity screening for heavy manufacturing facility power feeds.
Airport Airfield Lighting Circuits: Fault isolation and insulation testing for high-intensity runway lighting series transformer loops.
How to Choose the Right Tester
Match Cable Voltage Classes
Low-voltage distribution lines require basic TDR and insulation resistance units, whereas medium-to-high voltage underground grids (10kV to 110kV) require 32kV surge generators and VLF hipot systems.
Evaluate Fault Types
Intermittent high-resistance faults require surge generators utilizing arc reflection technology, while simple open-circuit breaks can be resolved using standard TDR units.
Consider Field Portability
Field service crews operating in remote terrain should select modular, battery-operated cart systems, while mobile laboratory vans require rack-mounted integrated diagnostic suites.
High-Voltage Transformer Winding: Custom high-voltage pulse transformers wound using high-grade grain-oriented electrical steel cores to eliminate flux leakage.
Automated Burn-In Testing: Completed high-voltage generation modules undergo 48-hour continuous full-load operational aging inside thermal chambers at +50 degrees Celsius.
Precision Calibration Loops: Distance measuring accuracy verified against standard reference cables of known propagation velocity factors (VOP).
Customization / OEM
Software Localization
Multilingual system menus and reporting software available in English, Spanish, French, Portuguese, and Russian.
Hardware Adaptation
Custom high-voltage test lead lengths, specialized vehicle-mounted power supply integration, and private-label front panel branding.
OEM/ODM Engineering
Modular hardware architecture adaptable for integration into customer-specific mobile test vehicle fleets.
Documentation & Certifications
Compliance Standards
CE electrical safety certification, ISO 9001 quality management system manufacturing compliance, and EMC electromagnetic compatibility verification.
Calibration Documentation
Each unit ships with an individual factory calibration report carrying traceable serial numbers and verification graphs.
Operational Deliverables
Comprehensive English user manuals, field operation quick-start guides, and post-processing software installation packages.
Certifications
FAQ
Q: How does the Arc Reflection Method help locate high-resistance cable faults?
A: The method applies a high-voltage surge that momentarily converts a high-resistance carbonized fault into a short circuit, allowing a low-voltage TDR pulse to reflect off the temporary arc and display the exact distance on screen.
Q: Can VLF hipot testing damage healthy XLPE cable insulation?
A: No. Operating at 0.1Hz significantly reduces the required charging current by a factor of 500 compared to 50Hz AC testing, providing effective dielectric screening without overstressing healthy insulation.
Q: What is the advantage of acoustic-magnetic synchronization in fault pinpointing?
A: When the surge generator fires, it creates both an electromagnetic wave (arriving instantly) and an acoustic shockwave (traveling slowly through the soil). Measuring the time delay between these two signals allows operators to pinpoint the exact dig site.
Q: Are these systems safe to operate in wet trench conditions?
A: Yes. The testing instruments feature isolated ground protection circuits and IP65 waterproof enclosures, though standard utility personal protective equipment (PPE) and proper grounding procedures must always be strictly observed.
Q: Can test reports be directly exported for utility asset management software?
A: Yes. Test waveforms and parameter logs can be exported via USB flash drive in structured data formats compatible with standard utility maintenance databases.
Q: What is the typical battery life for portable field units during remote testing?
A: The integrated rechargeable lithium-ion battery pack provides approximately 6 hours of continuous field testing or up to 50 high-voltage surge cycles independent of external AC power.
Q: Do operators require specialized certification to run these high-voltage cable testers?
A: While the equipment features automated safety interlocks and intuitive touchscreen workflows, operators should possess standard high-voltage electrical safety qualifications in compliance with local utility regulations.
