SF6 Gas Analyzer for Substation GIS and Circuit Breaker Maintenance
The SF6 Gas Analyzer is a portable multi-parameter diagnostic instrument engineered for simultaneous measurement of sulfur hexafluoride purity, moisture content, and toxic decomposition byproducts such as sulfur dioxide and hydrogen sulfide in gas-insulated switchgear and high-voltage circuit breakers. By integrating modular infrared sensors, thin-film capacitive moisture elements, and electrochemical cells into a sealed gas path, the unit extracts precise concentration data without venting large volumes of greenhouse gas into the atmosphere. Field maintenance crews and manufacturing quality control teams deploy this system to verify dielectric integrity, detect early-stage internal insulation degradation, and ensure environmental compliance prior to substation energization.
-
![SF6 Intelligent Dew Point Tester]()

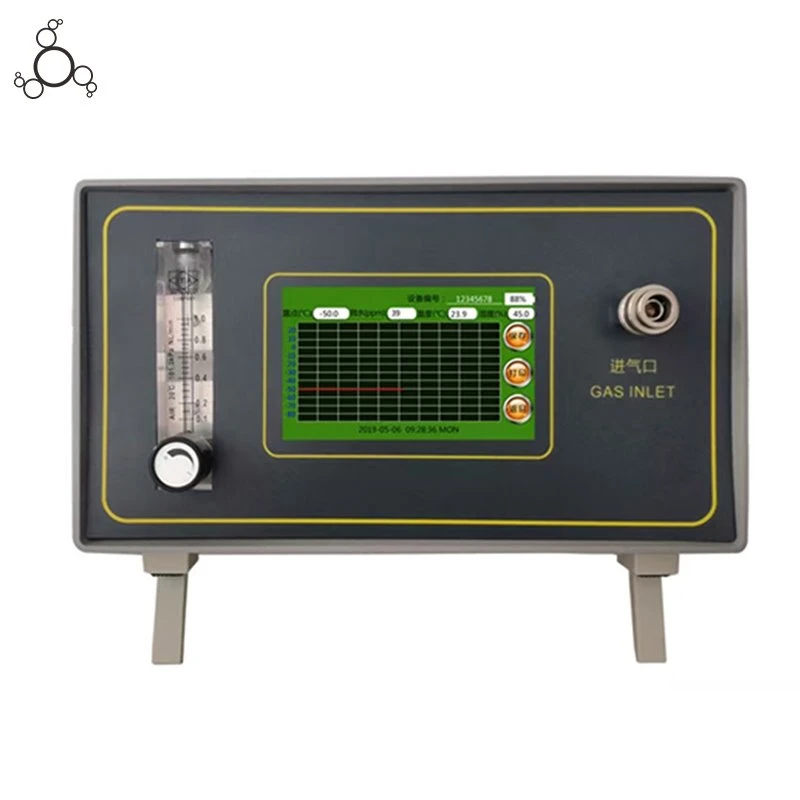

SF6 Intelligent Dew Point TesterThis SF6 intelligent dew point tester—also a professional sf6 gas quality analyzer, versatile sf6 analyzer, precise SF6 gas dew point meter, and reliable SF6 gas purity analyzer—is a portable, -
![Handheld SF6 Dew Point Tester]()

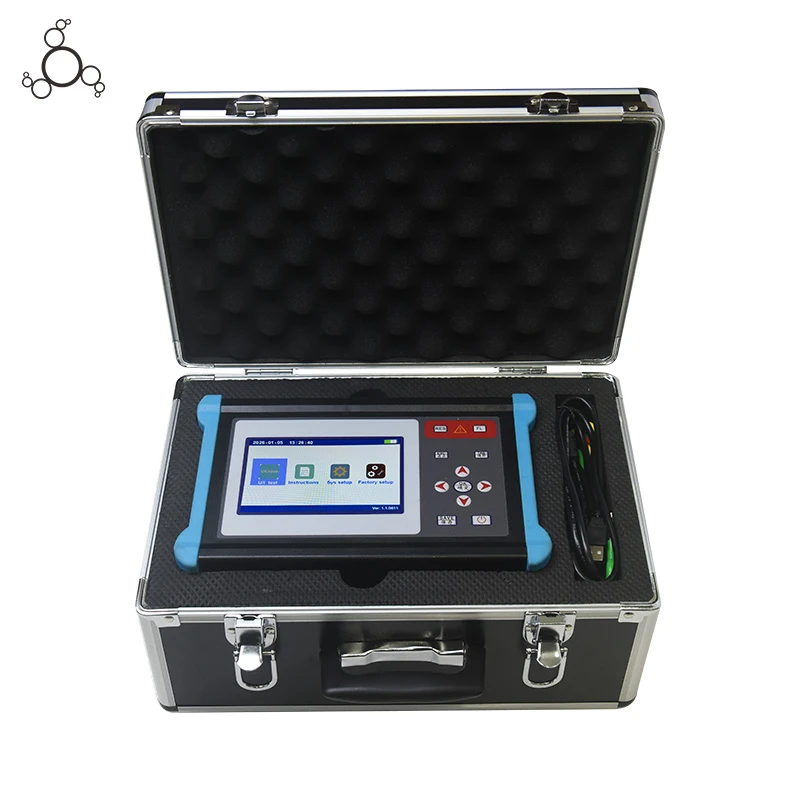

Handheld SF6 Dew Point Tester1.It adopts the international advanced pumping type, NDIR single-beam dual-wavelength infrared measurement technology, with high detection sensitivity, accuracy and stability;. 2.It adopts
We engineer and assemble automated gas diagnostic systems in our 12,000-square-meter production facility, maintaining direct control over optical sensor bench integration, gas manifold machining, electronic control board assembly, and calibration cycling.
Gas pathways are precision-machined from 316L stainless steel with electropolished internal surfaces to eliminate moisture adsorption and sample contamination.
Each analyzer undergoes a 72-hour continuous pressure leak test using helium mass spectrometry to ensure zero gas leakage under field operating pressures up to 1.0 MPa.
Integrated sensor modules are calibrated across 10 distinct temperature and concentration points against certified national reference gas standards.
Testing Capabilities and Product Types
Portable 3-in-1 Field Analyzers
Compact, rugged enclosure-integrated units combining moisture, purity, and byproduct measurement in a single handheld transit case for routine substation rounds.
Multi-Parameter GIS Diagnostic Carts
Trolley-mounted systems featuring automated gas extraction, filtration, and return loops designed for heavy industrial utility maintenance.
Dedicated Decomposition Detectors
Specialized low-ppm sensors optimized for rapid screening of sulfur dioxide and hydrogen sulfide following internal arcing faults.
Technical Specifications
| Parameter | Specification |
| SF6 Purity Measurement | 0 to 100% volume |
| SF6 Purity Accuracy | +/-0.5% |
| Moisture Measurement | -80 deg C to +20 deg C dew point |
| Moisture Accuracy | +/-2 deg C |
| Sulfur Dioxide (SO2) Measurement | 0 to 100 ppm |
| SO2 Resolution | 0.1 ppm |
| Hydrogen Sulfide (H2S) Measurement | 0 to 50 ppm |
| Sample Gas Flow Rate | 0.5 to 0.9 L/min with electronic regulation |
| Working Pressure Range | 0.05 to 1.0 MPa inlet pressure |
| External Pressure Reducer | Not required within the specified inlet pressure range |
| Response Time | Less than 3 minutes for 90% of final reading |
| Data Storage Capacity | Up to 5,000 test logs |
| Data Export | USB |
| Communication Interfaces | Bluetooth and RS232 |
| Power Supply | Built-in rechargeable lithium-ion battery; AC 220 V +/-10% line charger |
| Battery Operating Time | Up to 8 hours of continuous operation |
| Enclosure Protection | IP66 with transport case closed; IP30 during operation |
Key Features
Quick-Connect Self-Sealing Couplings: Utilizes German-standard self-sealing quick connectors on all inlet and outlet ports to prevent ambient air ingress and eliminate SF6 leakage during connection changes.
Internal Gas Recovery and Return Loop: Optional closed-loop configuration routes sampled gas back into the GIS compartment or recovery bag, preventing greenhouse gas venting into the work environment.
Temperature Compensation Algorithms: Embedded microprocessors correct moisture and purity readings dynamically based on real-time ambient and gas temperature inputs, eliminating seasonal drift.
Heated Sensor Manifold: Internal thermal management maintains the measurement chamber at a stable elevated temperature to prevent condensation accumulation during high-humidity field testing.
Direct-Print Field Documentation: Integrates a thermal ticket printer and onboard software to generate compliant test reports displaying time, location, pressure, and gas metrics instantly.
Test Applications
Substation GIS Commissioning: Pre-energization baseline testing of newly installed gas-insulated switchgear compartments to verify filling purity and dryness.
Periodic Preventive Maintenance: Annual diagnostic auditing of circuit breakers, transformers, and busbar enclosures to detect moisture accumulation or seal degradation.
Post-Fault Arcing Diagnosis: Immediate post-failure analysis of byproduct concentration to assess the severity of internal solid insulation damage and arcing extent.
SF6 Gas Quality Verification: Incoming quality control of bulk SF6 bottle supplies in utility warehouses prior to filling operations.
How to Choose the Right Tester
Selecting the appropriate SF6 Gas Analyzer requires matching your testing scope with specific diagnostic parameters:
For Routine Substation Maintenance
Prioritize portable 3-in-1 units that simultaneously measure moisture, purity, and primary decomposition products with lightweight enclosures under 7kg.
For High-Capacity GIS Asset Management
Select multi-gas diagnostic carts equipped with integrated gas return pumps and high-capacity desiccant purging systems for continuous daily testing.
For Environmental and Safety Compliance
Verify that the unit features closed-loop gas return options to meet strict local environmental regulations restricting accidental SF6 release.
Component Traceability: All non-dispersive infrared optical benches, mass flow controllers, and precision pressure transducers are sourced from verified tier-1 component manufacturers with strict batch tracking.
Manifold Integrity Testing: Every stainless steel gas block is pressure-tested at 1.5 times maximum working pressure and inspected using digital flow meters to eliminate internal cross-leakage.
Calibration Traceability: Final multi-point calibration is executed using NIST-traceable reference gas mixtures, with calibration coefficients saved directly to the sensor onboard memory.
Customization and OEM
Software and Language Localization
Custom UI language packs, localized regulatory reporting standards, and tailored data template layouts for regional utility networks.
Hardware Branding
OEM chassis color schemes, custom front-panel overlays, and private-label technical documentation for instrument distributors and test gear brands.
Accessory Configuration
Tailored hose lengths, specialized adapter kits for non-standard GIS valves, and custom transit case configurations.
Documentation and Certifications
Compliance Standards
Designed and manufactured in strict alignment with IEC 60376, IEC 60480, and electromagnetic compatibility standard IEC 61326-1.
Shipment Documentation
Each analyzer ships with an individual Factory Calibration Certificate bearing traceable metrology data, a CE conformity declaration, a gas safety manual, and an operation guide.
Certifications
FAQ
Q: Can this analyzer measure moisture and purity simultaneously from a single gas sample connection?
A: Yes. The internal gas pathway routes the sampled gas through the purity sensor, moisture sensor, and byproduct cells sequentially, delivering all primary metrics from a single connection cycle.
Q: How does the unit prevent ambient air contamination from altering dew point readings?
A: All inlet lines and internal manifolds utilize electropolished 316L stainless steel and self-sealing quick connectors, purging residual air automatically during the initial sample flush cycle before logging data.
Q: Is it necessary to vent tested SF6 gas into the atmosphere during operation?
A: No. While standard models allow controlled venting through exhaust ports, optional closed-loop return systems enable the tested gas to be pumped back into recovery cylinders or sealed compartments.
Q: How frequently must the internal sensors be recalibrated?
A: Under normal operating conditions, we recommend annual recalibration traceable to national standards to maintain high measurement accuracy and sensor linearity.
Q: What adapter types are provided for connecting to different GIS valve brands?
A: The unit includes standard multi-brand adapter kits compatible with DILO, Parker, and standard domestic quick-disconnect valves used across global high-voltage switchgear.
Q: What is the typical warm-up time required before starting accurate measurements?
A: The analyzer features an automatic temperature-stabilized sensor manifold that reaches thermal equilibrium and operational readiness within 10 minutes of power-on.
Q: What is the standard lead time for standard catalog units versus custom OEM orders?
A: Standard catalog units ship within 5 to 7 working days from stock. Custom OEM projects involving specialized valve connections, private labeling, or localized software require 3 to 4 weeks depending on order volume.
