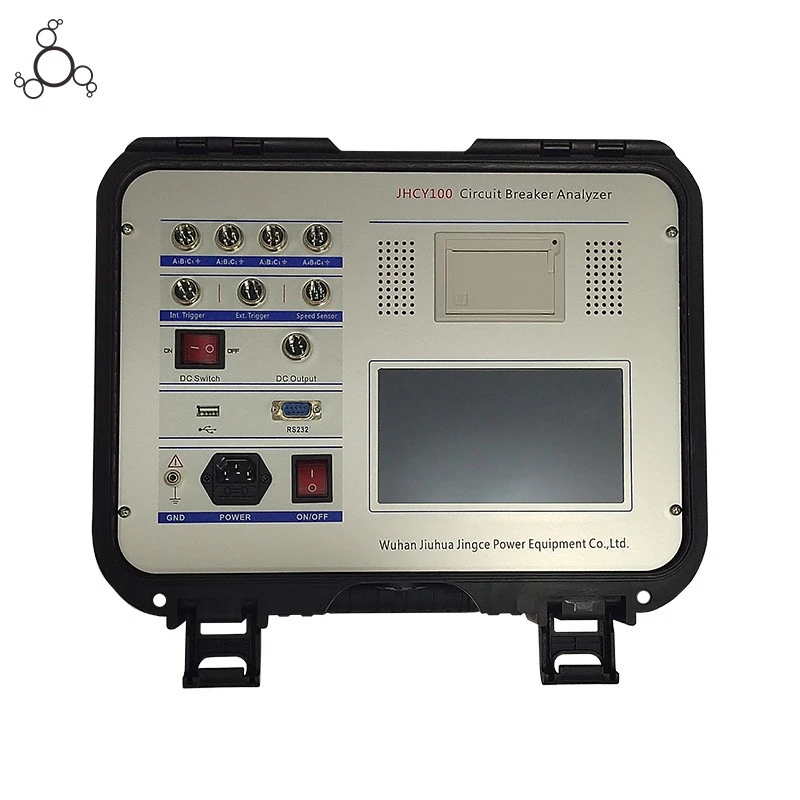

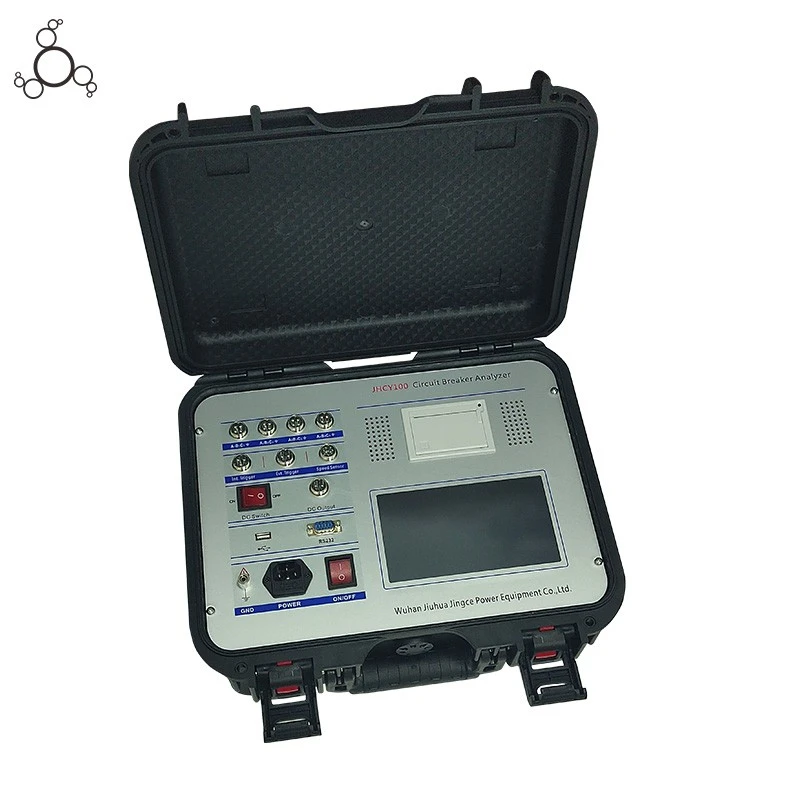

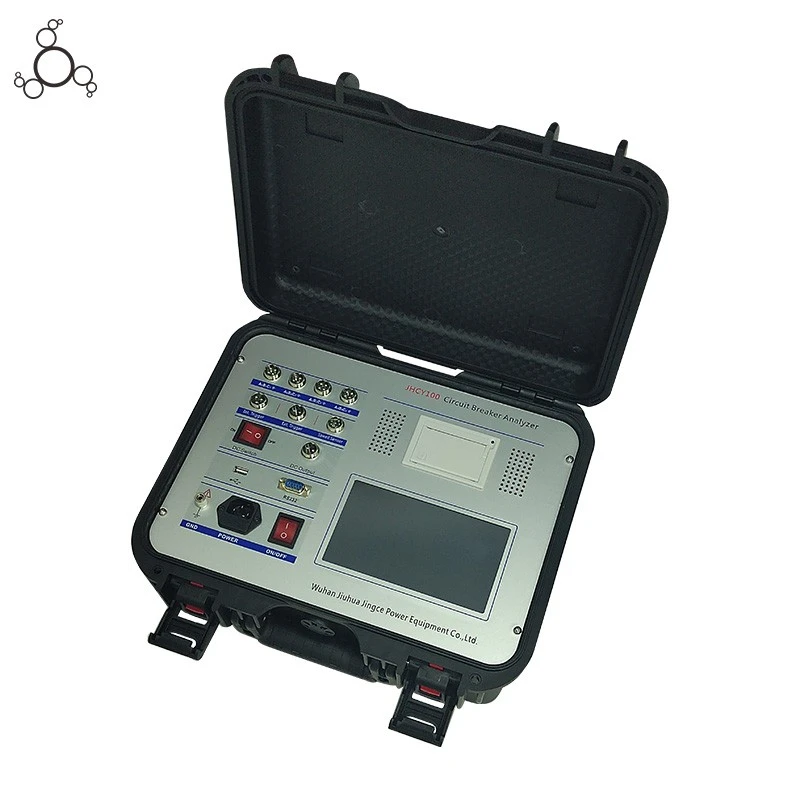

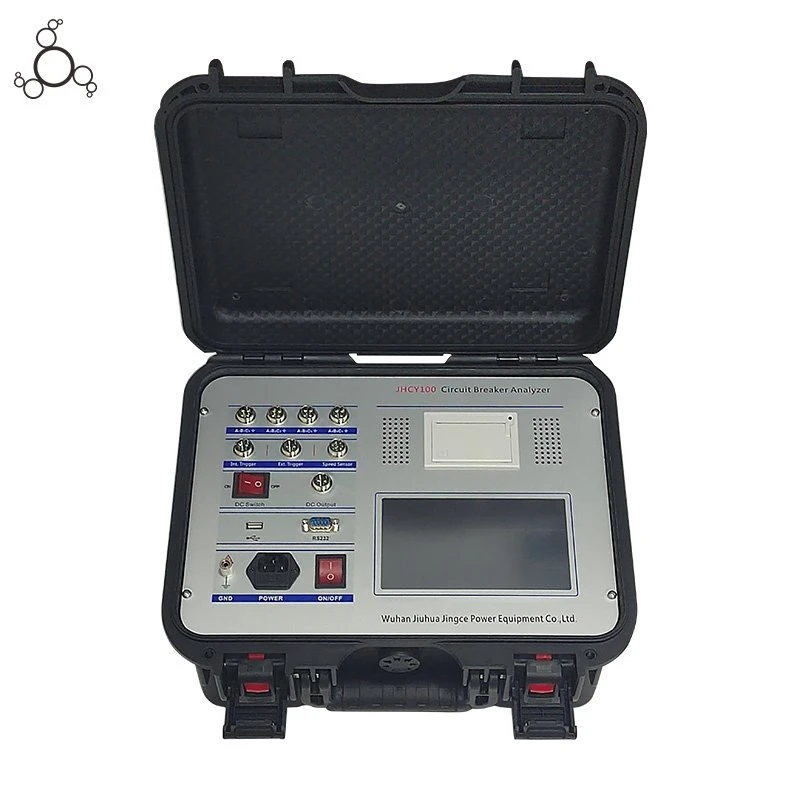

Upgraded Circuit Breaker Analyzer

This instrument is a special circuit breaker analyzer developed by our company which aims to meet the needs of various high-voltage switch operating characteristics tests. It can accurately measure the mechanical dynamic characteristics of high-voltage circuit breakers, such as oil-free, oil-rich, vacuum, sulfur hexafluoride and other mechanical dynamic parameters, and supports contact resistance meter test to comprehensively evaluate the electrical contact performance of circuit breakers. The instrument uses a large screen display, man-machine dialogue operation in Chinese, Chinese characters display the results and print out. It has the advantages of intelligence, multifunction, accurate data, strong anti-interference, simple operation, small size, light weight and nice appearance.

1.Applicable to all types of metal contact SF6 switches, GIS combination appliances, vacuum switches, oil switches at home and abroad.
2.Linear travel sensor and rotation sensor are extremely convenient and simple to install.
3..Large screen, direct and backlight LCD, electronic contrast adjustment. Chinese menu prompt, switch once, display all data and Curve graphs.
4.The main unit can store multiple groups of on-site opening and closing test results, the real-time clock inside the machine is convenient for archiving and saving the test date and time
5.Built-in fast micro printer, print all data and map.
6.The digital circuit breaker analyzer has a powerful data analysis function, which can effectively analyze various mechanical characteristics index parameters of the circuit breaker.

1.Time: inherent breaking and closing time of 12 common metal breaks. Same phase, same period.

2.Re-closing: close-open,open-close,open-close-open time of each break: open one time, close one time, open two times, close-open time and no current time value.

3.Spring: Closing spring time,spring times, spring process, spring Curve for each break; rebound amplitude for each break.

4.Speed: speed at instant of touching, speed at instant of separating , maximum speed, time-travel characteristic curve.

5.Current: Opening and closing current value, current Curve of coils.

6.Operating voltage: DC30 ～ 250V / 20A digital adjustable circuit breaker power supply is provided in the equipment to automatically complete the low voltage operation test of the circuit breaker and measure the operating voltage values of circuit breaker.

1. Time measurement:

12 natural switching (closing) time

The opening (closing) phase is not at the same time

The difference between different periods of switching (closing)

Closing (opening) Bouncing time (number of bounces)

Internal trigger test range: 1ms ~ 10000ms, resolution: 0.01ms,

External trigger test range: 1ms ~ 10000ms,

Resolution within 999ms: 0.01ms,1000-9999ms: 0.1ms, and over 10000ms: 1ms.

Accuracy within 200ms: 0.05%± 0.1ms

2. velocity measurement : instant separating (instant closing) velocity

Appointed time slot( stroke segment or angle segment) average

velocity

3. velocity measurement range: 0.1mm sensor 0.01~20.00m/s,345°angle sensor 1 cycle/ 0.01°

4. Travel measurement: Travel of moving contact (travel)

Contact stroke (open distance)

Over travel

Overshoot or rebound stroke

5. Measuring range: linear sensor: 50mm, measuring range: 0-50mm, resolution :0.1mm.

Optional 100-1000mm linear sensor of any length.

Encoder: 345° Rotate sensor, measurement

range: 0-1000mm, resolution :0.1

6. Current resistance range: the maximum current 20 A, resolution: 0.01 A, 1000 Ω resistance, resolution: 0.01 Ω.

7. Instrument power supply: AC 220V ± 10%; 50 hz plus or minus 10%

8. Dc power output: continuously adjustable DC20 ~ 270V, DC220V≤20A (short time), Power: 4400W.

9. External trigger voltage: AC/DC10-300V, current ≤120A

10. disconnecting switch measurement range

(1)Voltage output: DC20~270V(adjustable)

(2)Current output time: 0.01~10 s (settable)

(3)Fracture signal maximum acquisition time: 10s

(4)Measurable fracture closing, separation time, three-phase a synchronism , bounce time and frequency .

11. mainframe volume : 360×260×170mm

12. operating environment: -20℃~+50℃

13. relative humidity: ≤90%
