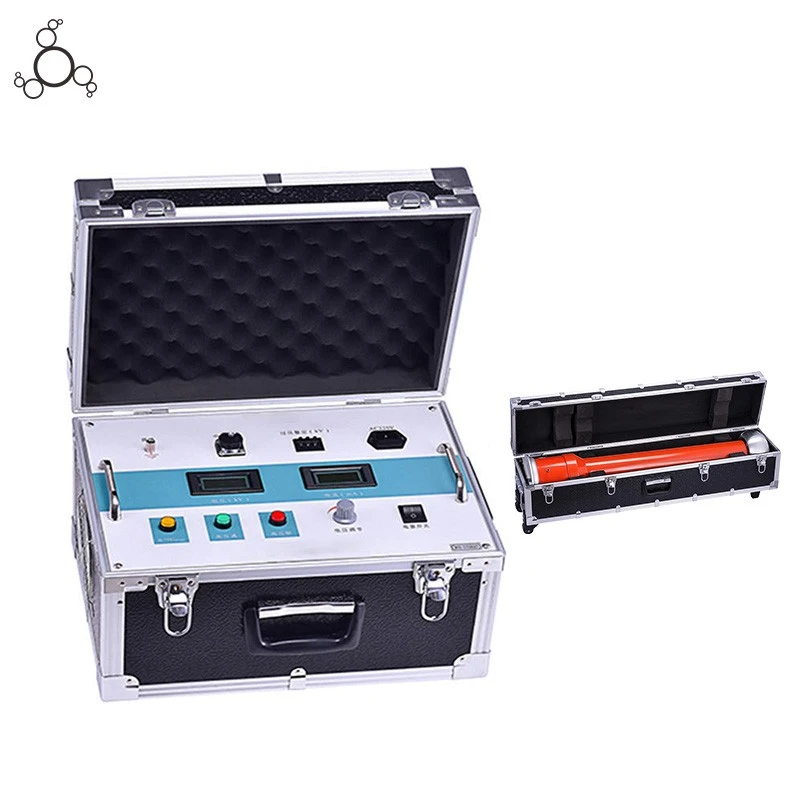

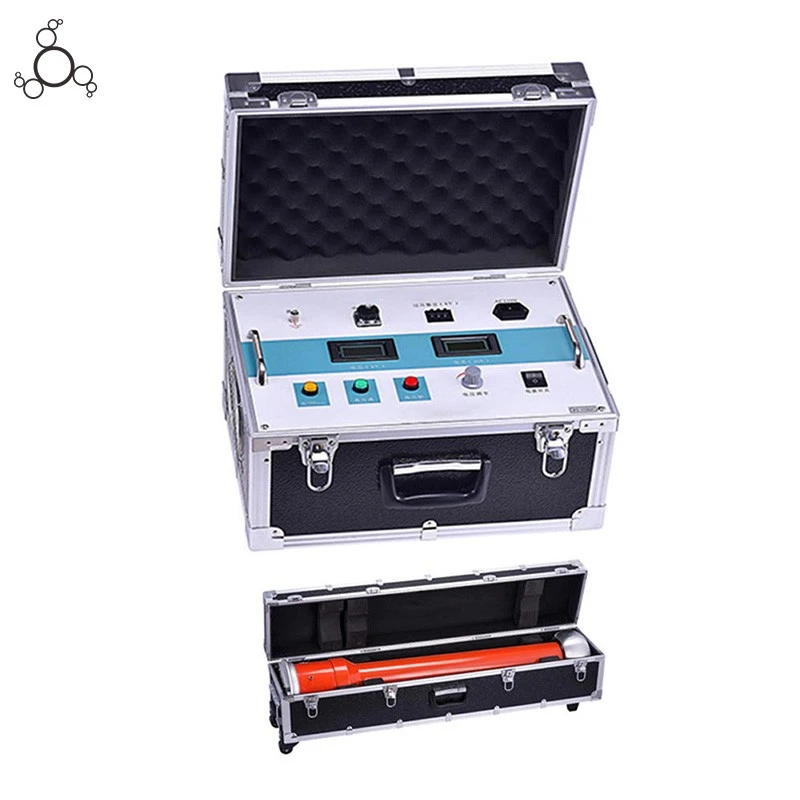

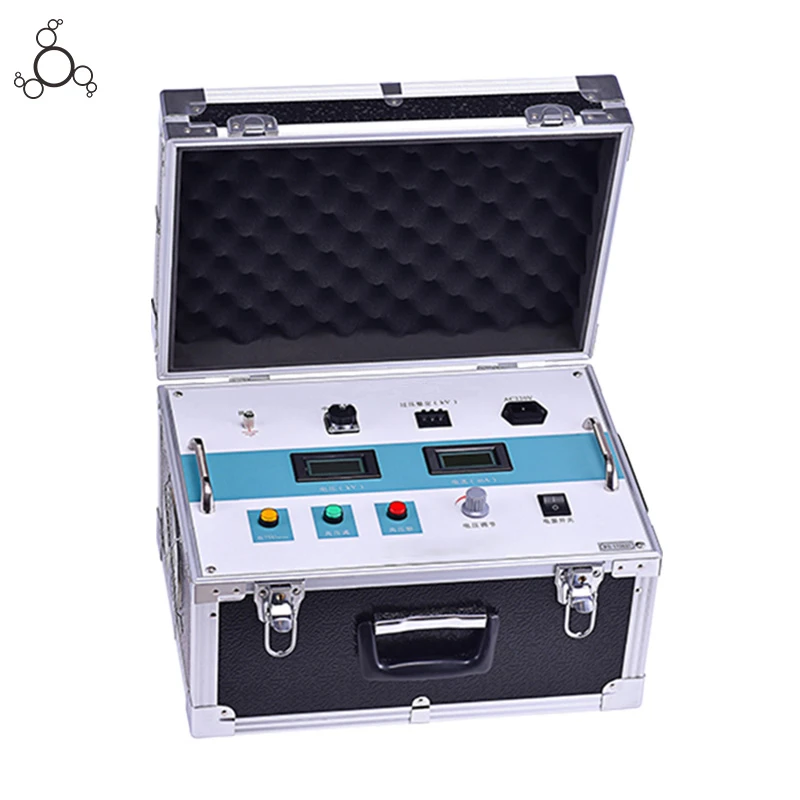

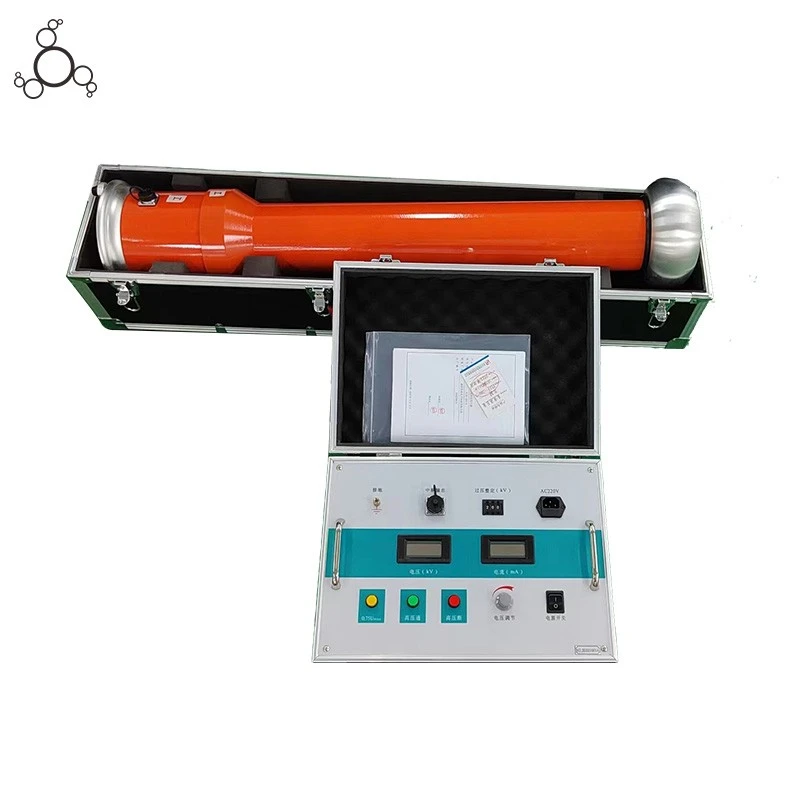

This series includes four independent split-type models: 200kV/2mA, 200kV/3mA, 200kV/5mA, 200kV/10mA dc high voltage generator. They are professional dc hipot tester equipment for dc withstand voltage test and leakage current tests. Adopting medium-frequency voltage doubling & PWM control, they feature stable output, low ripple, full protection, and easy operation, ideal for on-site high-voltage dc withstand test.

Product Introduction

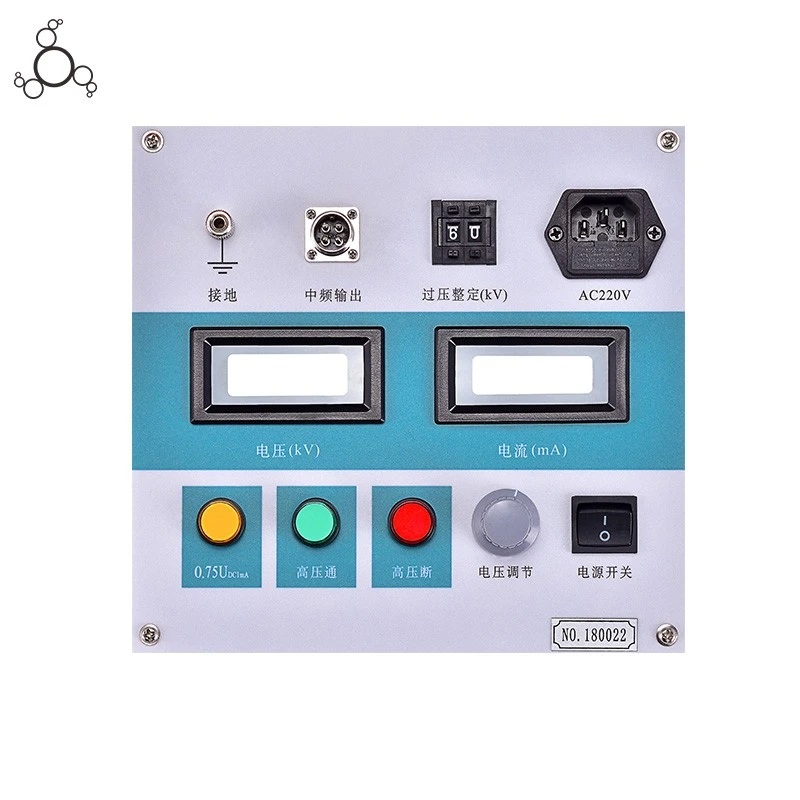

This split type dc high voltage generator series is a reliable high voltage power supply designed per DL/T 848.1 standard. It provides four separate current ratings to meet varied testing demands. All models use imported IGBT, dual closed-loop feedback, and split structure, ensuring 0–200kV continuously adjustable output with ripple ≤0.5%.Equipped with zero-start, overvoltage, overcurrent, and breakdown protection, plus a one-key 0.75UDC1mA function for lightning arresters, it is a professional generator hipot test solution. When paired with auxiliary devices, it can act as an ac dc withstand voltage tester for comprehensive insulation verification. Lightweight, durable, and easy to carry, it is widely used in power, railway, petrochemical, and mining industries for cables, transformers, generators, and arresters.

Product Parameter

Model	FRC-200KV
Divider resistance	2400 MΩ
Voltage class of Voltage divider	AC：200kV DC：200kV
LV display meter range	Low：0-20kV High：0-200kV
AC measurement	True RMS measurement
Accuracy	AC：1.0% DC：0.5%
Dielectric	U.S. DuPont Dry media material
Divider ratio	1000：1
Connection coaxial cable	4m
Temperature	0~40℃
Relative humidity	≤85%RH
