As global power infrastructure expands and a large number of aging transformers, cables and new energy equipment enter routine maintenance cycles, insulation resistance testing has become a mandatory inspection item under IEC and local power grid specifications. Insulation aging, dampness and internal cracks are invisible hazards that cannot be identified through visual inspection alone.
Long-term lack of regular megohmmeter tests will lead to equipment breakdown, power outages and even safety accidents.Traditional hand-cranked analog megohmmeters can no longer match modern testing demands.
Most old models only support single fixed voltage, require manual timing to calculate absorption ratio (DAR) and polarization index (PI), and suffer severe reading drift under strong electromagnetic interference inside substations. For engineering teams serving multiple project sites, slow testing and unstable data greatly reduce overall work efficiency.
Upgraded Digital Megohmmeter Solves On-Site Testing Pain Points

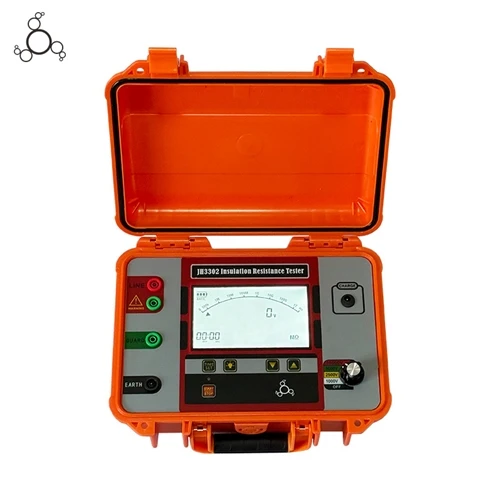

In response to widespread feedback from overseas electrical contractors and third-party labs, Wuhan Jiuhua Jingce launched the JH3302 digital insulation resistance tester, optimized for medium and high voltage equipment field inspection.
Different from outdated analog equipment, this portable tester integrates four standard test voltages: 1000V, 2500V, 5000V and 10000V, covering motors, distribution transformers, high-voltage cables and switch cabinets of different voltage classes. Equipped with high-precision ADC chips, it automatically records R15, R60 and R600 values during timed testing and directly outputs DAR & PI results without manual stopwatch recording.
The 5-inch dual display screen combines analog trend bar and precise digital readings, allowing technicians to observe insulation resistance changes throughout long-duration polarization tests. Built-in lithium battery supports over 10 hours of continuous outdoor operation, eliminating reliance on temporary power sources at construction sites.
The independent GUARD shielding terminal effectively offsets surface leakage interference when testing layered insulating materials and long-distance power cables, ensuring accurate measurement data even under humid field conditions.
In terms of measurement stability, the JH3302 controls output voltage error within 5% under 1GΩ load, with segmented accuracy standards ranging from 1MΩ to 1TΩ to meet different testing thresholds. All operation steps are simplified via knob and shortcut keys; new operators can complete a full set of insulation tests without complicated training. The complete supporting wiring set and standardized after-sales system also bring stable use experience to global clients.
Key Criteria For Choosing Qualified Insulation Test Equipment
When purchasing megohmmeters for long-term project use, power industry buyers need to focus on four core indicators:
1.Multi-gear adjustable high voltage to match different equipment test standards;
2.Automatic DAR & PI calculation function to comply with international acceptance documents;
3.Strong anti-interference performance for substation and factory electromagnetic environments;
4.Complete traceable test data and portable body suitable for frequent outdoor patrols.
Devices that fail to meet the above standards will produce unreliable test data, leading to unqualified project acceptance and hidden safety risks for power assets. With 13 years of power test instrument R&D and manufacturing experience, our factory provides standardized, cost-effective testing solutions for more than 50 countries worldwide, with full ISO and CE certification support.
Clients requiring technical manuals, operation videos or customized testing schemes may contact our WhatsApp team to obtain detailed product information and factory quotations.
